Airbus A320 MIP Guides

Dimension and assembly reference guides for CDPD Prints SL3 and WinCtrl centre-panel MIP builds. View each page online or download the complete PDF.

Please note: All dimensions are in millimetres and include rear features. These guides are not print-scale templates. Green lines show matching peg positions, confirmed by CDPD Prints. Speaker mounting hardware and the mounting hardware between the three main sections are not shown.

SL3 MIP guide

Download SL3 PDF

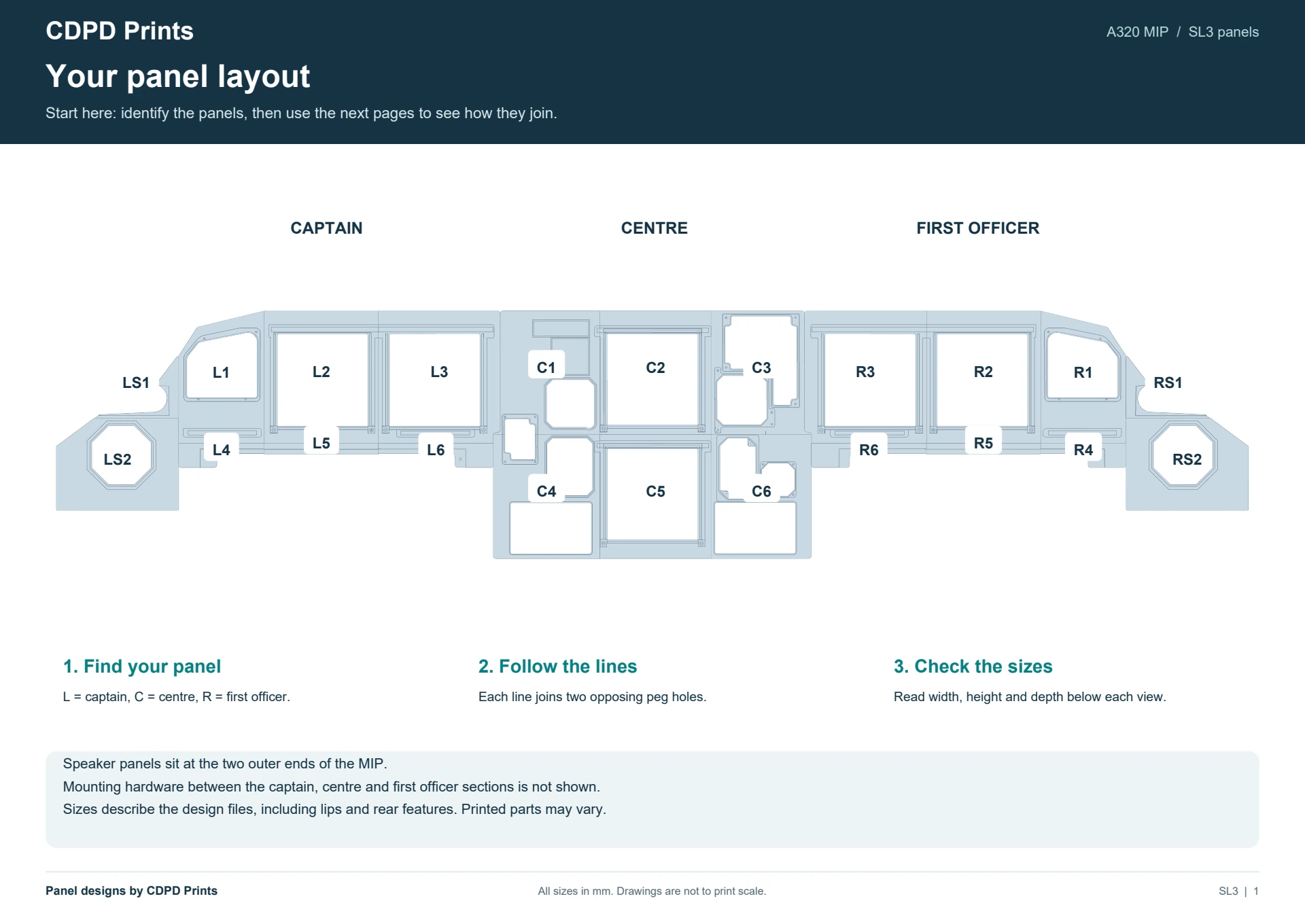

SL3 A320 MIP full panel layout
1. Full panel layout

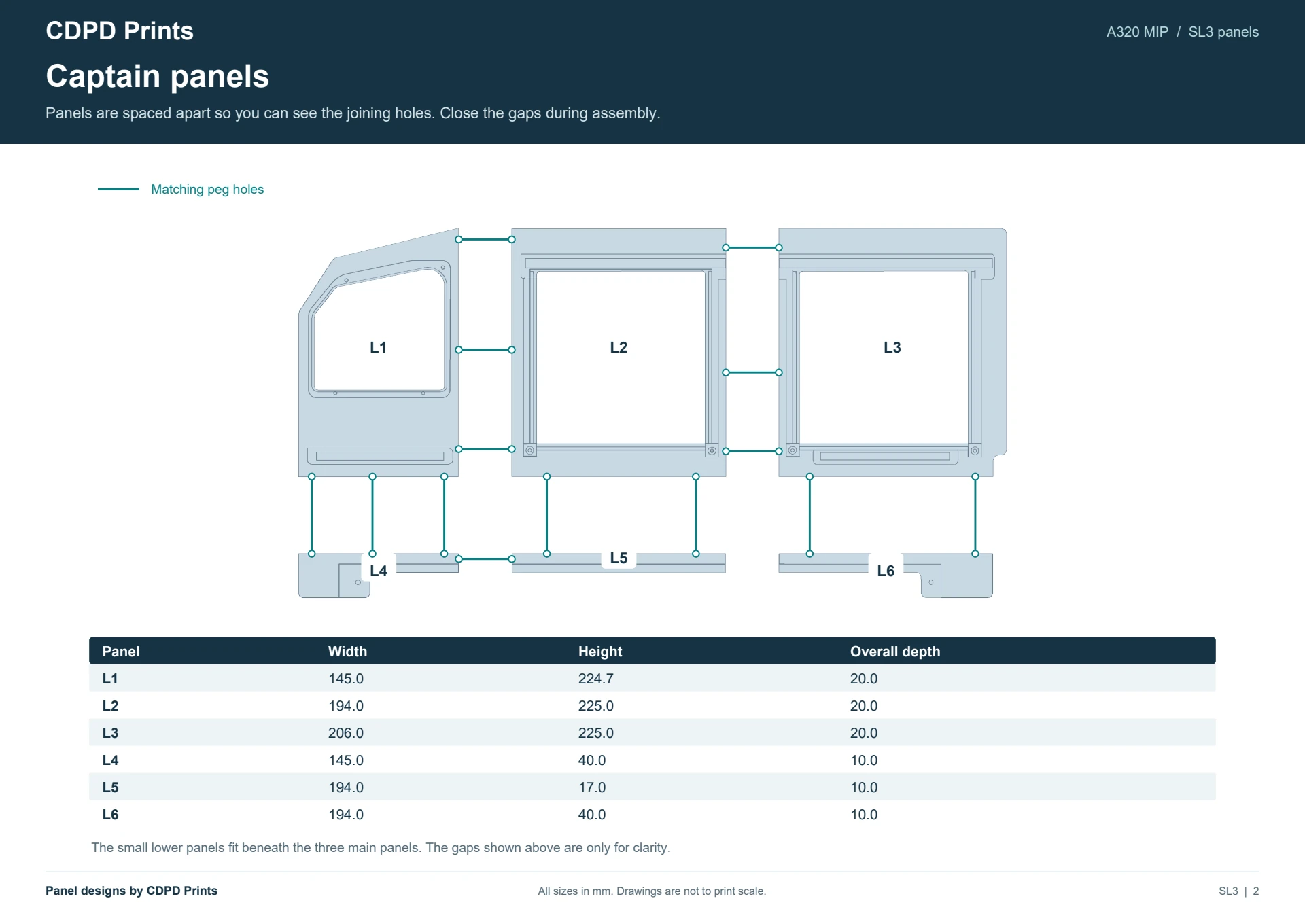

SL3 captain panel dimensions and peg connections
2. Captain panel

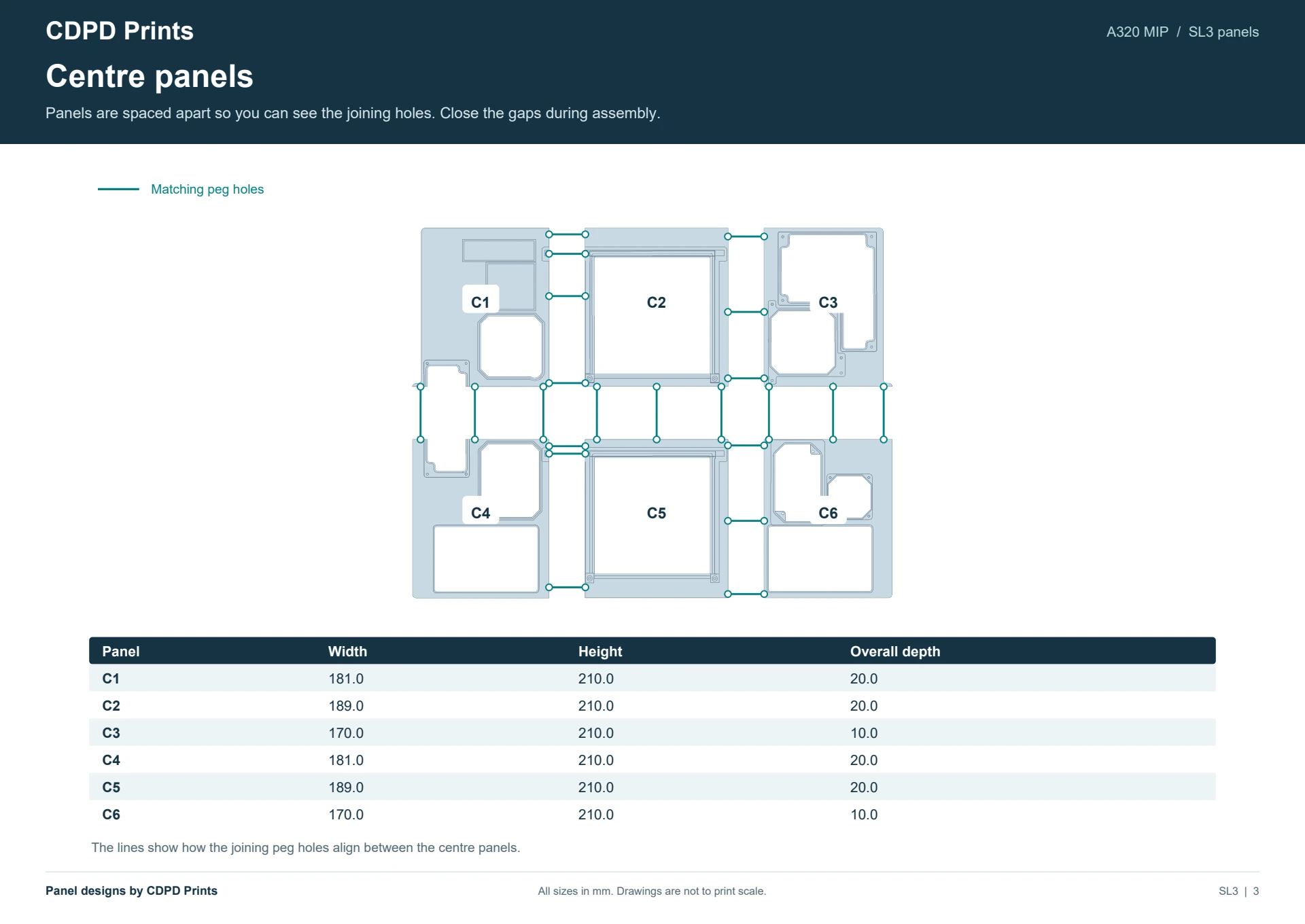

SL3 centre panel dimensions and peg connections
3. Centre panel

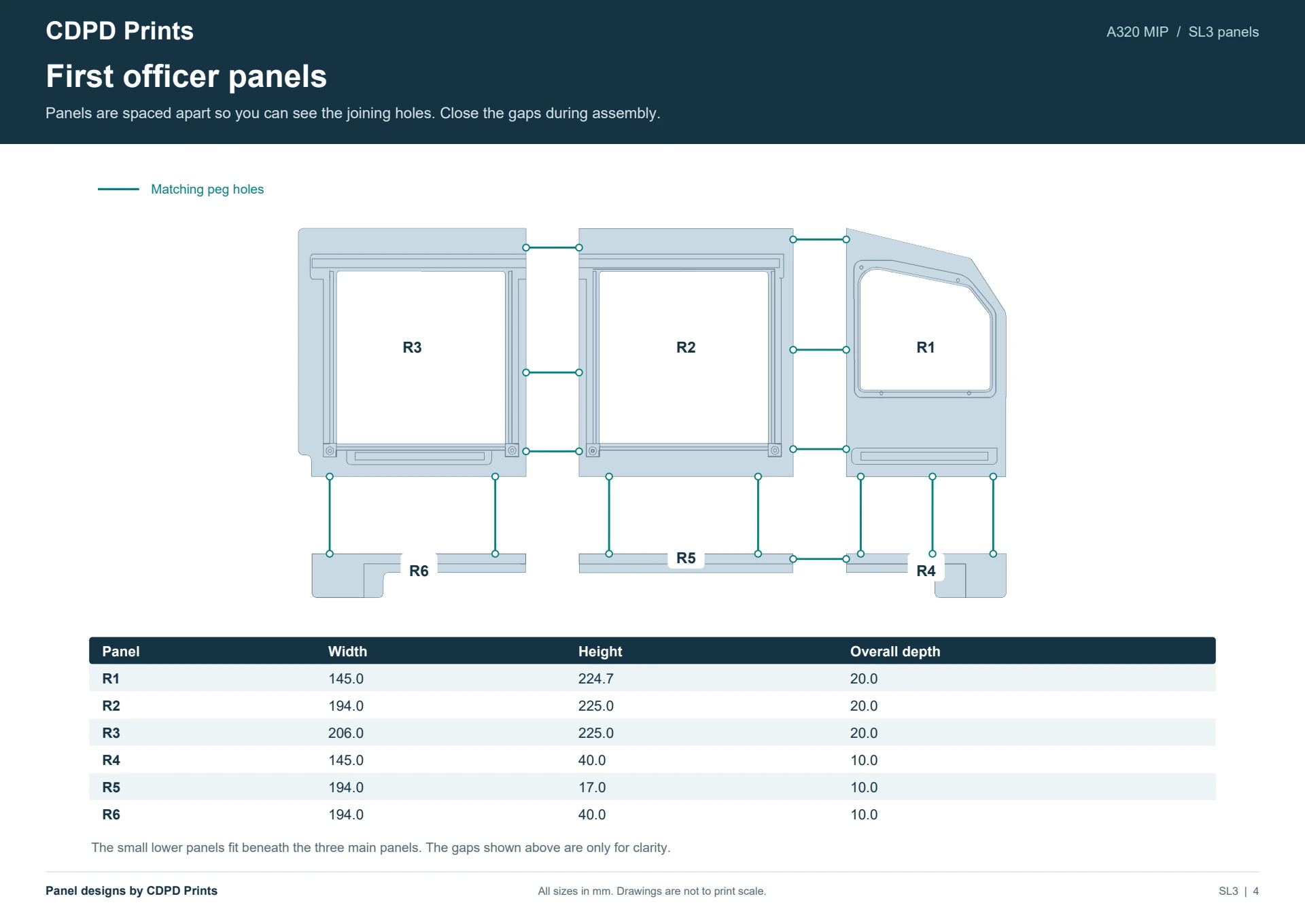

SL3 first officer panel dimensions and peg connections
4. First officer panel

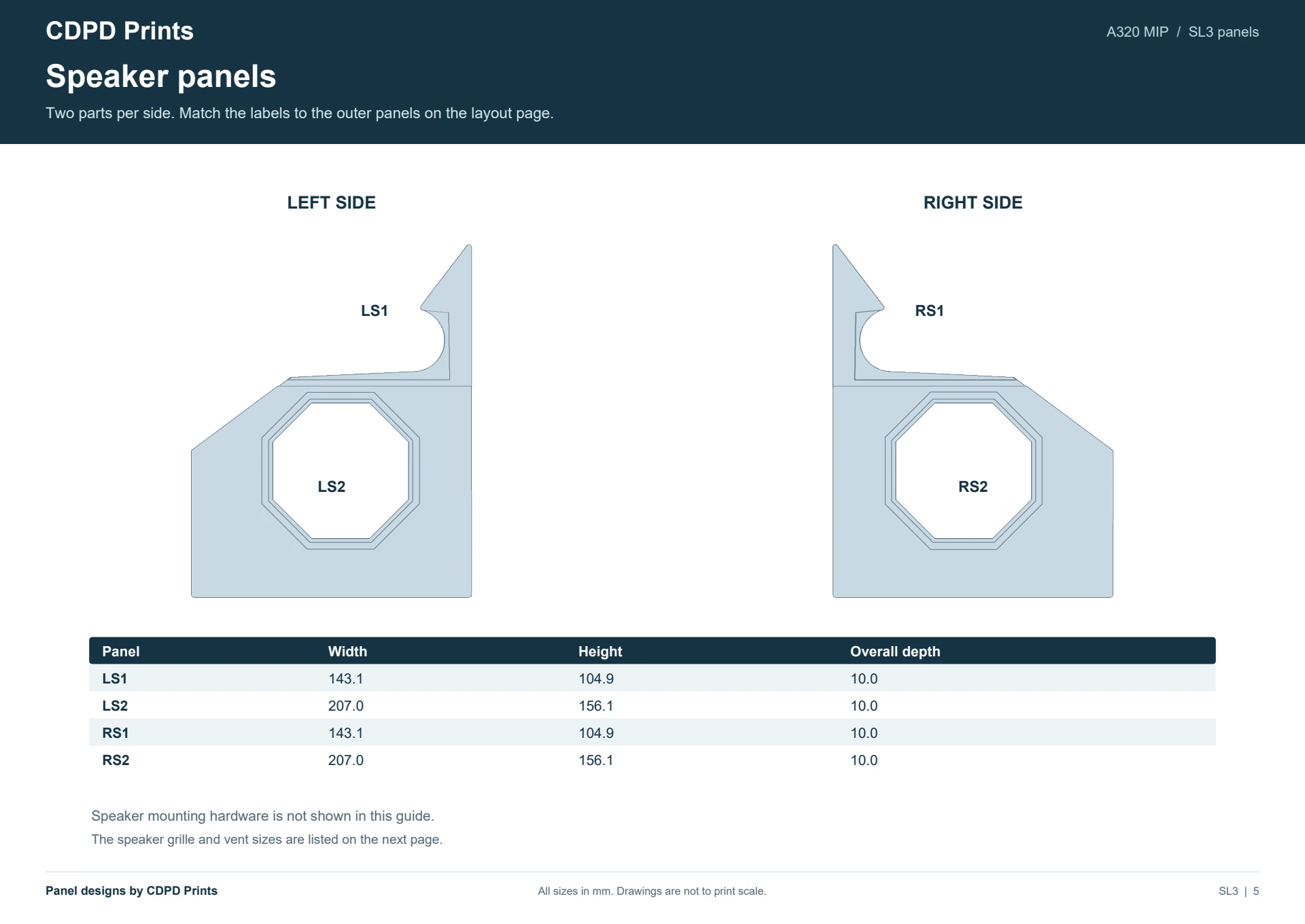

SL3 speaker panel dimensions
5. Speaker panels

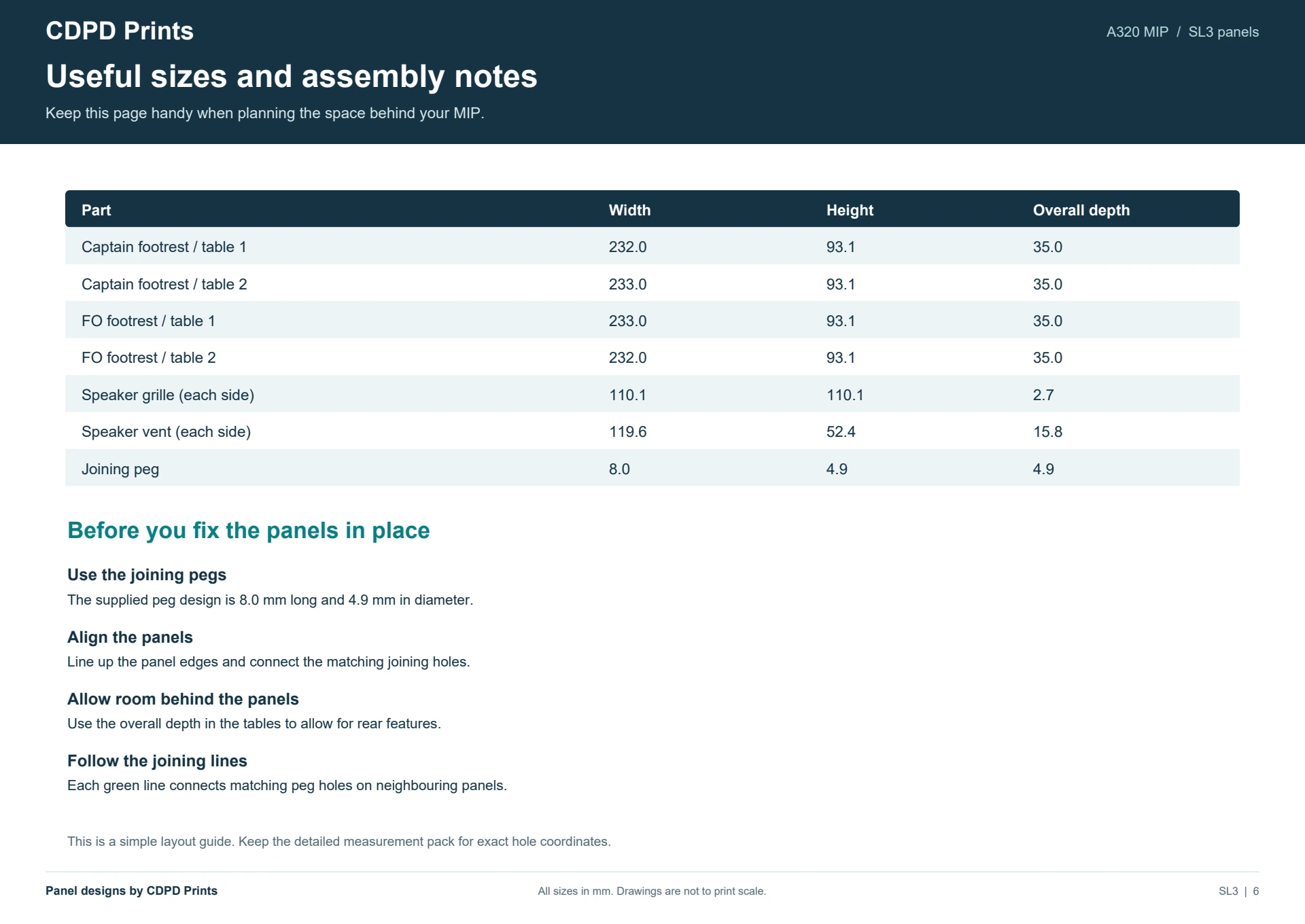

SL3 useful sizes and assembly notes
6. Useful sizes and assembly notes

WinCtrl MIP guide

Download WinCtrl PDF
WinCtrl A320 MIP full panel layout
1. Full panel layout

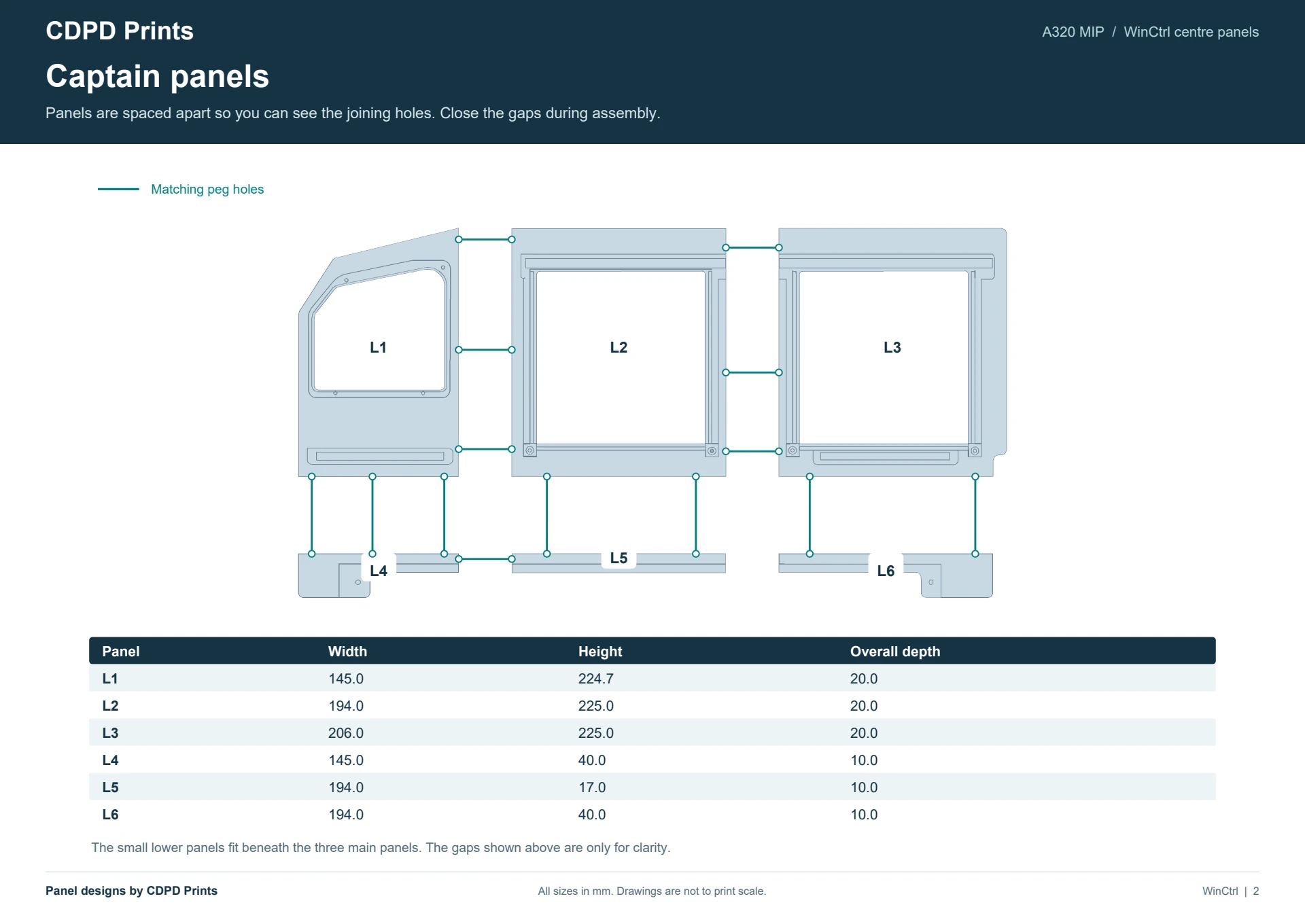

WinCtrl captain panel dimensions and peg connections
2. Captain panel
WinCtrl centre panel dimensions and peg connections
3. Centre panel
WinCtrl first officer panel dimensions and peg connections
4. First officer panel

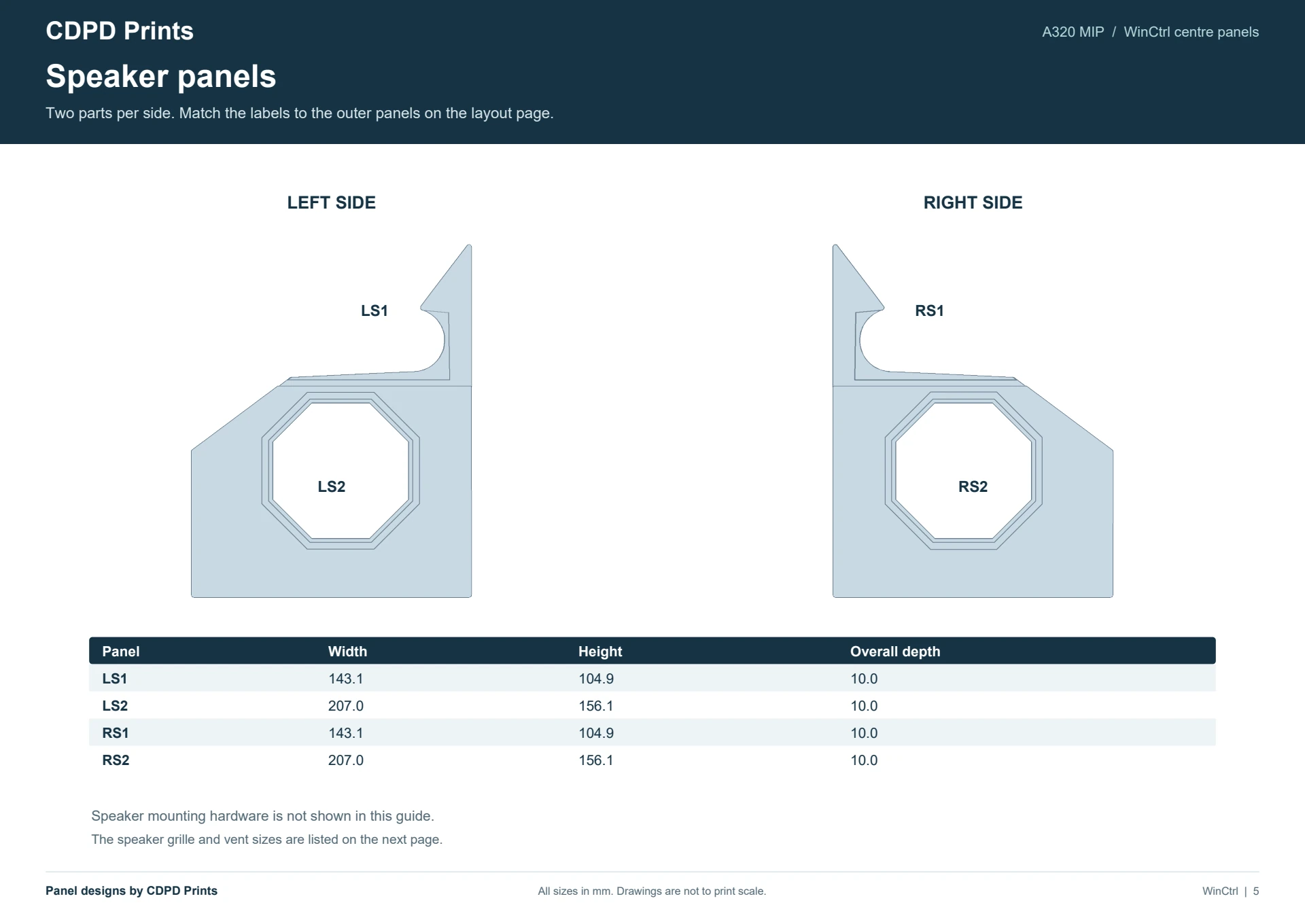

WinCtrl speaker panel dimensions
5. Speaker panels

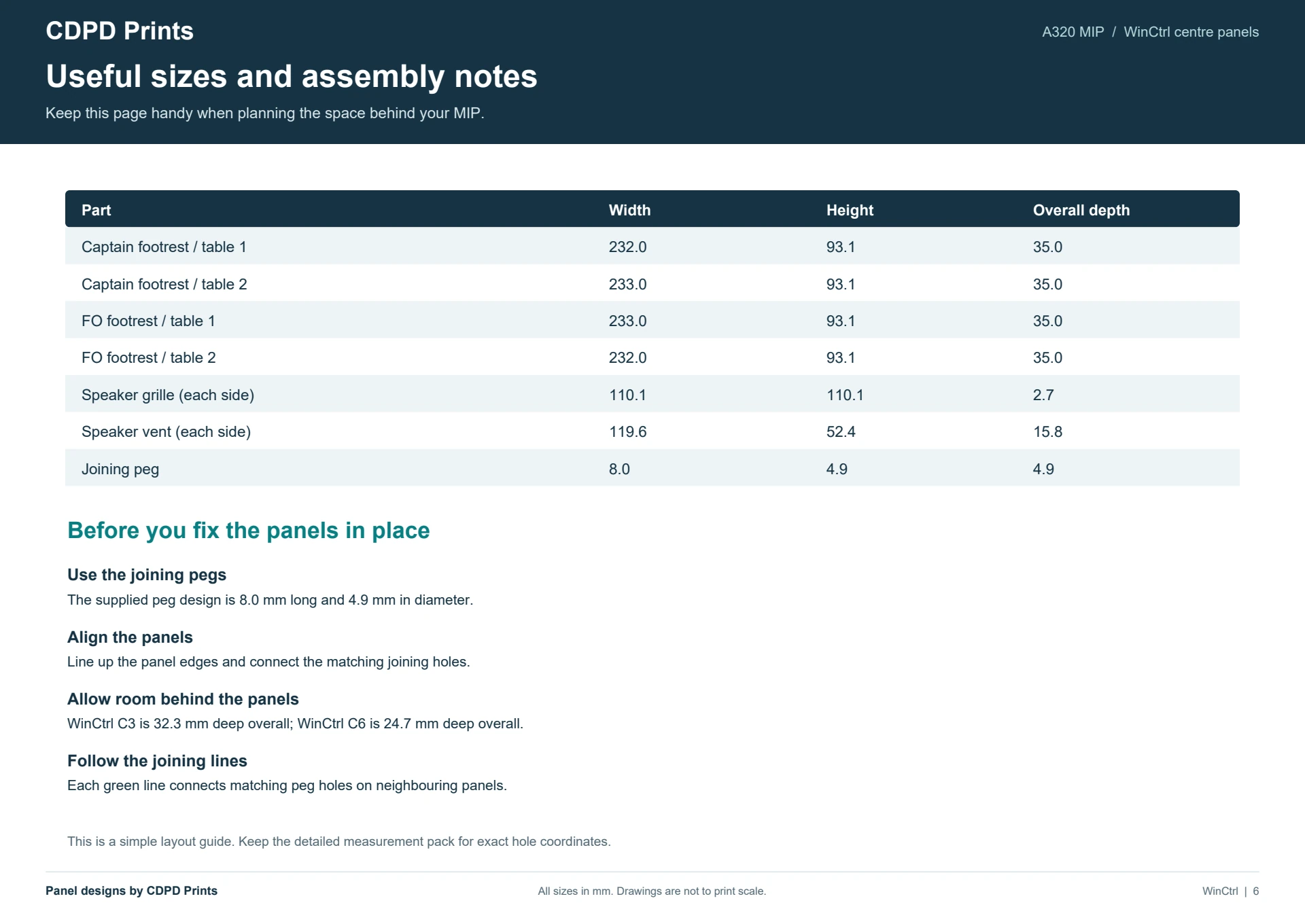

WinCtrl useful sizes and assembly notes
6. Useful sizes and assembly notes
